OZM-72 Modified for UAV-deployment

13 May 2025

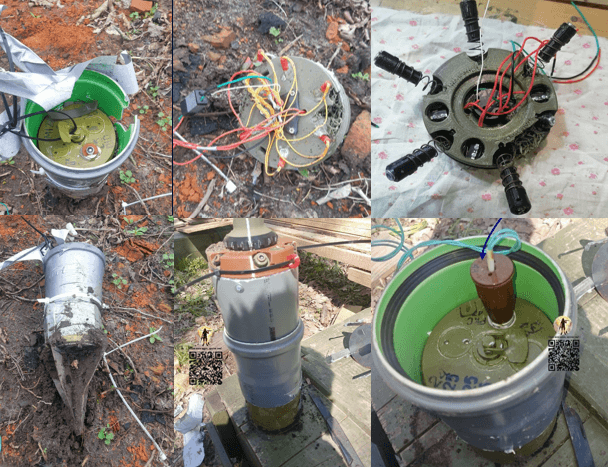

Composite image of an adapted OZM-72 landmine

The OZM-72 (Ukr: ОЗМ-72) anti-personnel bounding mine has been adapted by Ukraine for deployment by uncrewed aerial vehicle (UAV)

The OZM-72 (Ukr: ОЗМ-72) anti-personnel bounding mine has been adapted by Ukraine for deployment by uncrewed aerial vehicle (UAV)
The modifications include: an outer casing; a ground spike; a stabilizing fin assembly; an improvised tripwire assembly and fuzing
The mine is dropped by UAV, stabilized by the fin assembly and secured in the ground by the spike
Impact with the ground causes the fin assembly to slide downward and release the spring-loaded tripwires
The tripwires may be used in conjunction with a proximity sensor, similar to the Johnnie type fuzes
The improvised fuzing can incorporate electric detonators, such as the EDP (Ukr: ЭДП), or NM (Ukr: НМ) initiator

METIS Links

OZM-72, NM Initiator, EDP, Johnnie

Source Information *

Source 1, Source 2, Source 3, Source 4, Source 5, Source 6, Source 7, Source 8, Source 9, Source 10, Source 11, Source 12
