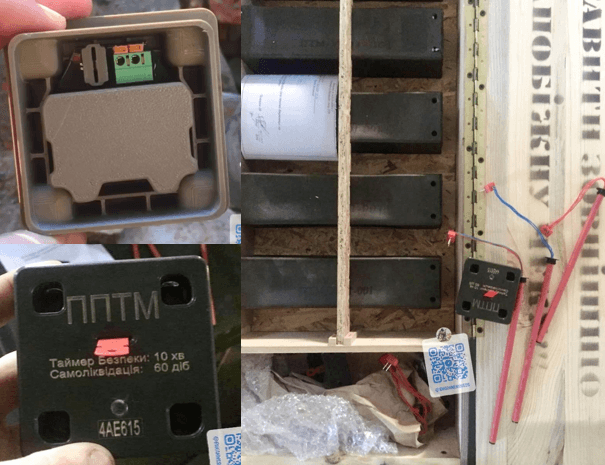

A modified fuzing system has been developed for the Ukrainian new generation PTM-3, uncrewed aerial vehicle UAV) delivered, anti-tank (AT) mines
The system consists of:
A plastic 3D-printed fuze holder
A programmable Johnnie fuze
An electrical connector
A safety tab
A long electrically-initiated detonator
The long length detonator is an effort to replicate the Soviet-era-designed dual-end detonation system in the original PTM-3, this would improve upon the single point of initiation in the current Ukrainian PTM-3 mines
The fuze is marked with PPTM (Ukr: ППТМ), which may be the designation for the fuze or the mine itself. PPTM may translate to ‘Anti-tank Anti-personnel Small-sized Mine’ (Ukr: Протитанкова протипіхотна мала розмірна міна), as it does for the Russian PPTM-R, however this would likely only be applicable for the short variant of the Ukrainian PTM-3
The other markings denote the arming delay (10 minutes) and self-destruct period (60 days)
We sent out new Bulletins via email, directly to our METIS enterprise-level users and publish them on our Blog the following week. To receive these directly to your inbox as soon as they're released, please contact us about upgrading your account.
Munitions: PTM-3 (Ukrainian new generation), Johnnie and PPTM-R
